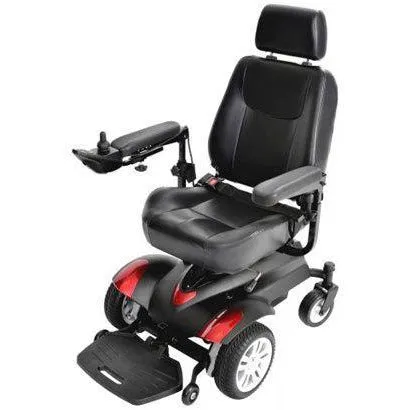

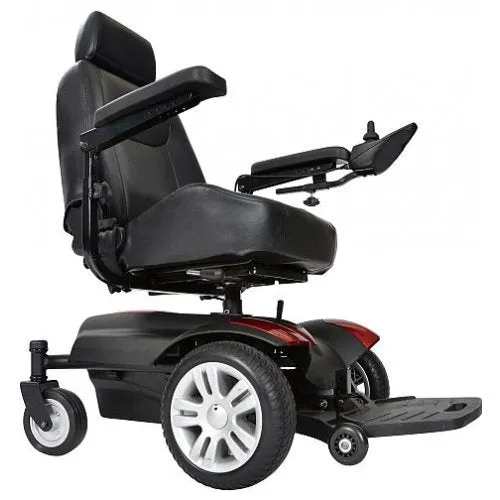

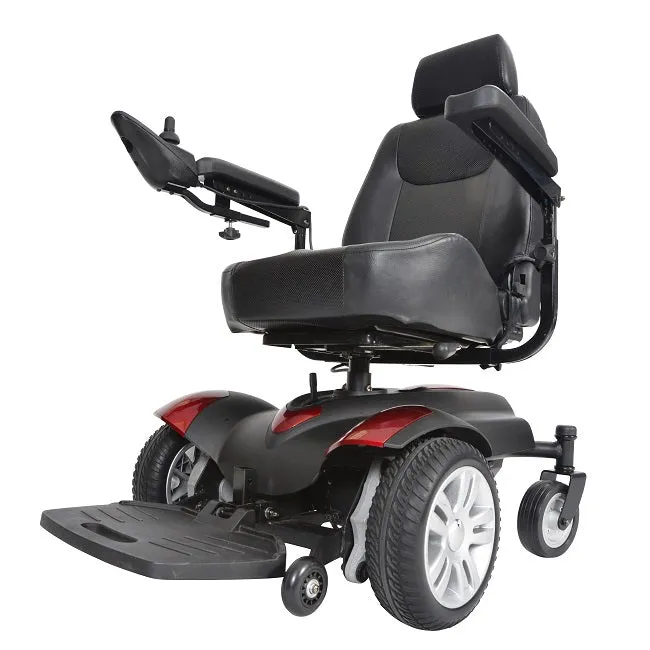

The Titan Front-Wheel Drive Power Wheelchair is a new gold standard in modern styling.
The Titan uses a unique front wheel set-up that positions the drive wheel forward at the user's center of gravity, making it extremely stable and high performing over small obstacles.
The Titan features a 25" turning radius that allows it to navigate tight, enclosed spaces with ease. This product features a unique design with its ability to change the color panels to red or blue whenever you want. Featuring a 300 pound weight capacity.
It's practicality and comfort with style! The Titan makes handling daily mobility activities a breeze thanks to its tight turning radius and an overall width that fits into narrow spaces. The adjustable position controller lets you place it where it's most comfortable for you. And the deluxe captain's seat features an adjustable angle backrest, flip-up armrests, a swivel seat and is available in 18" and 20" widths.

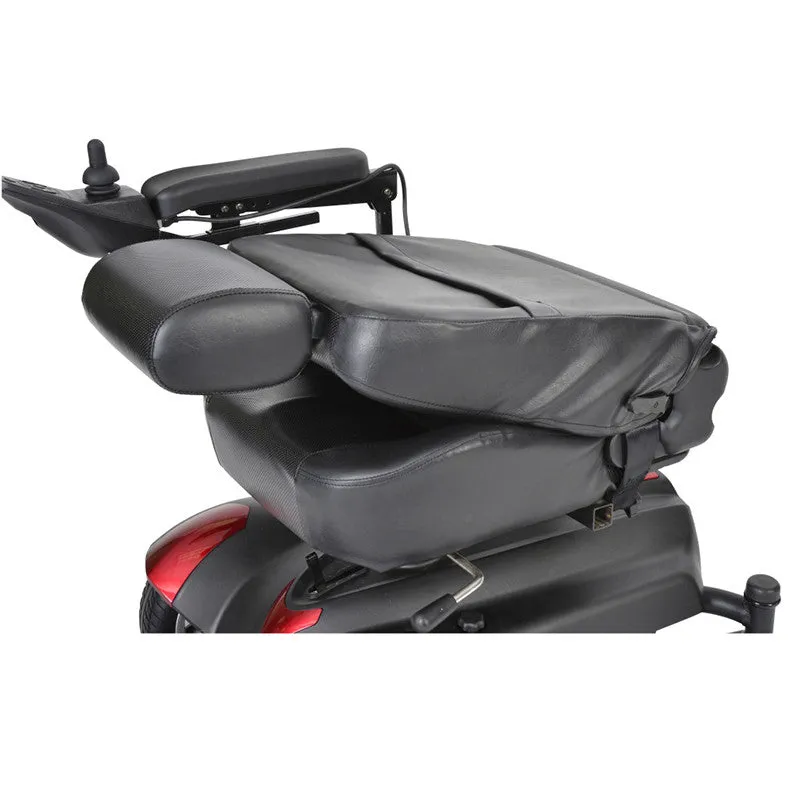

- Height-adjustable swivel seat features fold-down backrest.
- Includes interchangeable color panels in red and blue.
- Seat back reclines and features adjustable headrest.
- Adjustable-length controller mount.
- Armrests are padded, adjustable and removable.
- Available with 18" or 20" captain's seat.
- Optional swing-away controller arm (Item #AA4100) sold separately.
- Adjustable, flip-up footplate.
- Positioning belt included.
- Optional elevating leg rests (requires Item #AE2500 & Item #LK3JELR) sold separately.
- Programmable controller.
- Flat-free, non-marking tires.
- Easy freewheel operation.
- Anti-tip wheels
| WEIGHT CAPACITY | 300 lbs. |
|---|---|
| TOP SPEED | 4 mph |
| MAXIMUM RANGE | 15 miles |
| TURNING RADIUS | 25" |
| CLIMBING ANGLE | 6° |
| GROUND CLEARANCE | 2.5 |
| DIMENSIONS | 40" (L) x 25" (W) |
| FLOOR-TO-SEAT HEIGHT | 20.5" - 23" |
| CAPTAIN’S SEAT DIMENSIONS | 18" (W) x 18" (D) | 20" (W) x 18" (D) |
| CONTROLLER | Dynamic Shark 40A |
| MOTORS (2) | 24V x 200W x 3900 rpm |
| BATTERIES (PAIR) | 12V x 35AH (U1) |
| CHARGER | 3A Offboard |
| BRAKES | Electromagnetic |
| CASTER WHEELS | 6" x 2" Solid |
| DRIVE WHEELS | 10" x 3" Flat-free |
| BASE WEIGHT | 68 lbs. |
| BATTERY WEIGHT (PAIR) | 44 lbs. |
| SEAT WEIGHT | 43 lbs. |
| TOTAL WEIGHT | 158 lbs. |
| WARRANTY ON FRAME | Lifetime |
| WARRANTY ON ELECTRONIC CONTROLLER/DRIVE TRAIN COMPONENTS | 14 months |
| WARRANTY ON BATTERIES | 6 months |
