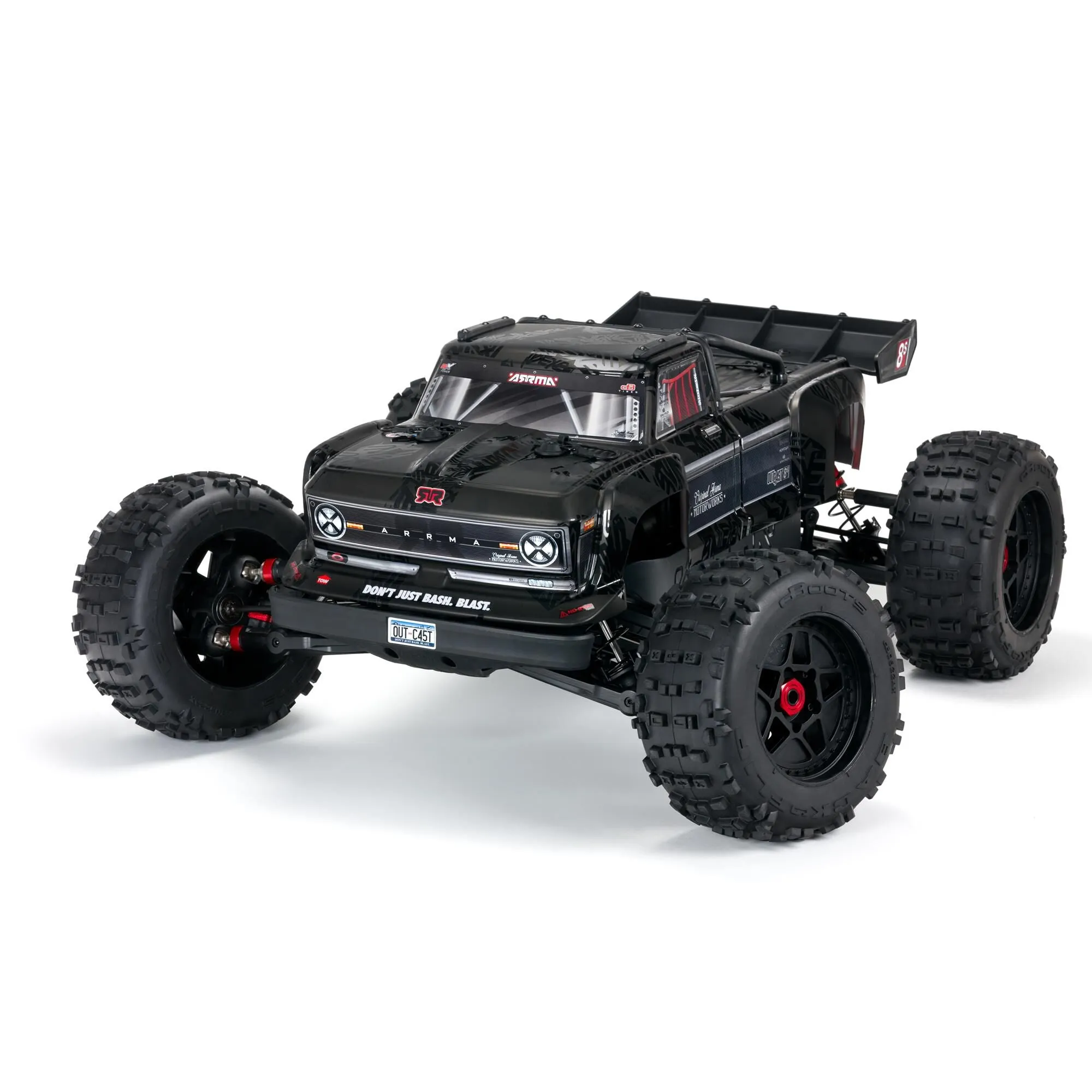

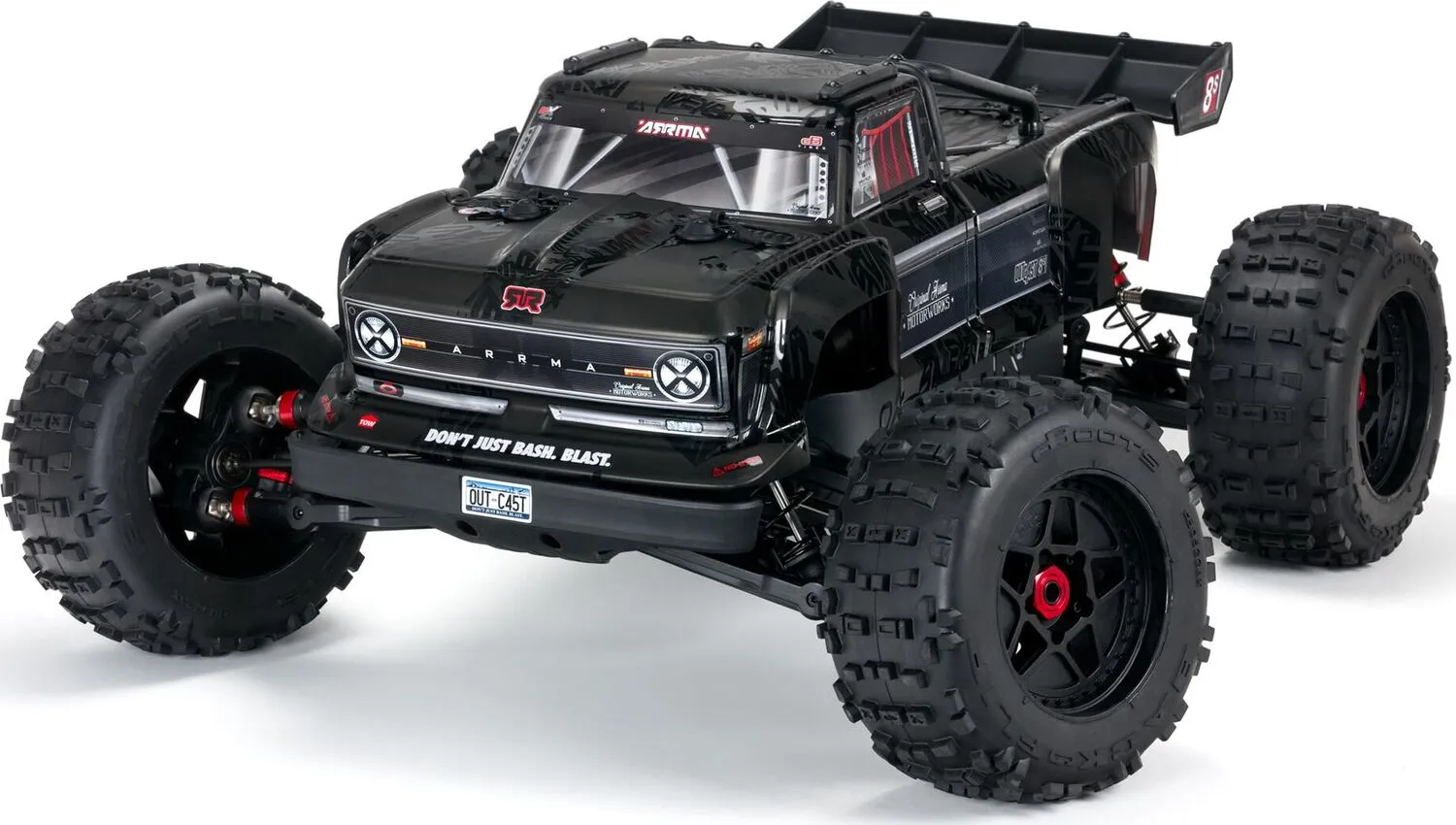

Fully assembled and ready for your choice of electronics, the ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller adds extra toughness everywhere it counts — making it the ultimate platform for performing stunts and bashing over brutal terrain.
- EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
- EXB Matte and gloss effect body
- Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
- dBoots® Back-Flip tires
- All-metal diff outdrives and gearbox internals
Product Details
In The Box
(1) ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller
(1) Optional 39T Spur Gear
(1) 49 Series Motor Plate
(1) 56 Series Motor Plate
(1) 1/5 Servo Mounts
(1) 1/6 Servo Mounts
(1) Product Manual

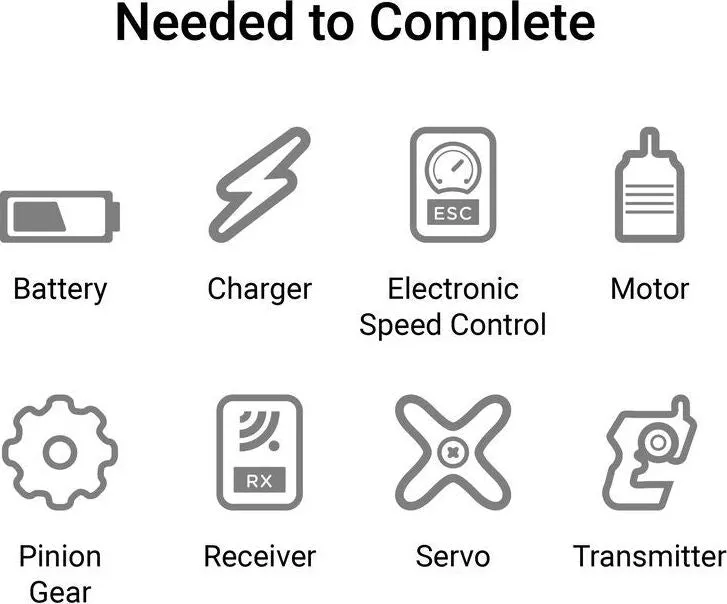

Needed to Complete
(1) 2 Channel Transmitter and Receiver
(1) Metal Gear, Hi-Torque 1/5 Scale Steering Servo
(1) Electronic Speed Control
(1) Motor
(2) 3S or 4S LiPo Battery
(1) Compatible LiPo Battery Charger
(1) Pinion Gear
Product Specifications
Ball Bearings: Full Set, Rubber Shielded
Chassis: 5mm plate, 7075-T6 aluminum
Completion Level: Roller
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Product Height: 12.01" (305 mm)
Top Speed: 55
Wheel Hex Size: 24mm
Battery Tray Dimensions: 6.69 x 2.16 x 2.09 in (170 x 55 x 53mm)
Front Track: 23.46" (596mm)
Power System: Roller
Product Width: 23.46" (596 mm)
Radio: Sold Separately
Final Drive Ratio: 9.1 - 28.4
Rear Track: 23.46" (596mm)
Speed Control: Sold Separately
Wheelbase: 16.93" (430 mm)
Approximate Assembly Time: 1 - 3 Hours
Body: Painted, decalled and trimmed
Brakes: Integral with ESC (ESC not included)
Scale: 1/5
Vehicle Type: Stunt Truck
Water-Resistant: Yes
Product Weight: 23.32lbs (10.6kg)
Charger: Sold Separately
Differential: 3 Differentials, Gear Type Design
Receiver: Sold Separately
Shock Type: Aluminum Body Oil-Filled Coil-Over Springs
Battery: Sold Separately
Internal Gear Ratio: 9.06
Product Length: 28.11" (714 mm)
Spur Gear: 47T and 39T included
Suspension: Independent
Power Type: Electric
Gear Pitch: 1.0 MOD
Servos: Sold Separately
